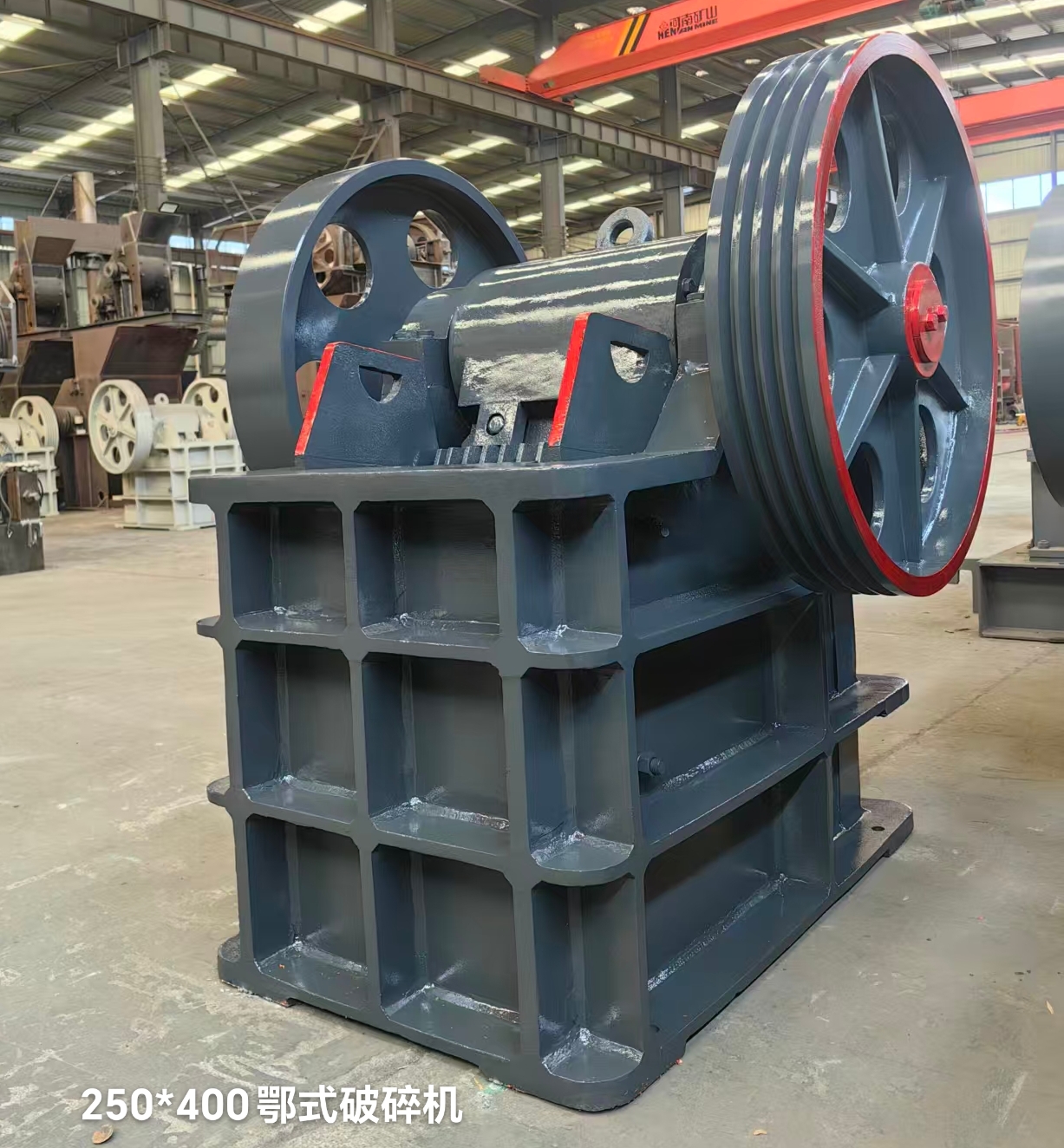

PE250*400 Jaw crusher

Feeding sizes:125-1020mm

Capacity: 1-1300t/h

Application fields: Widely used in mining, metallurgy, building materials, highway, railway, water conservancy and chemical industry and many other industries.

Usage:  Applicable to granite, marble, basalt, limestone, quartz, pebble, iron ore, copper ore and other ores with compressive strength not more than 320Mpa.

One hundred years heritage  simple structure, classic performance reliable mechanical adjustment of welding frame

Features：

1.Deep crushing cavity and high crushing ratio;

2.Gasket type adjustment device for discharge hole;

3.Centralized lubrication system, fast,safe,reliable and low maintenance;

4.Simple structure,reliable work and low cost for operating;

5.Large adjustment can meet the requirements of different users;

6.Spare parts are wearable and with long life service;

Working Principle

This product is driven by the motor, triangle belt and groove wheel drive eccentric shaft through the motor pulley ,so the moving jaw reciprocates according to the predetermined trajectory, and the material into the crushing chamber will be broken, at the end the finished material will be discharged through the lower discharge port.

PE 250*400 Jaw Crusher technical Data

Input size(mm):250*400

Maximum feeding size(mm):<200

Discharge opening size(mm):20-50

Capacity(t/h): 5-20

Motor power(kw): 15

Overall demission(m) ：1.43*1.31*1.34
