TGM130 Trapezium Grinding Roller Mills|Raymond Mill Spare Parts / TGM130(5R)Suku Cadang Mesin Raymond Mill

TGM130 Trapezium Grinding Roller Mills|Raymond Mill Spare Parts | TGM130(5R)Suku Cadang Mesin Raymond Mill  in Indonosia market

The TGM130 (5R) Super-Pressure Trapezium Roller Mills|of Raymond mill is widely used for crushing and grinding materials such as limestone, calcite, calcite carbonate,bentonite, basalt, coal gangue, gypsum, dolomite, marble, feldspar,charcoal and barite. The resulting powders—including limestone powder, ground calcium carbonate, 325-mesh bentonite powder, gypsum powder, and barite powder—play vital roles in industrial sectors such as power plant flue-gas desulfurization, stone paper manufacturing, plastic masterbatch production, construction materials, and ceramics.

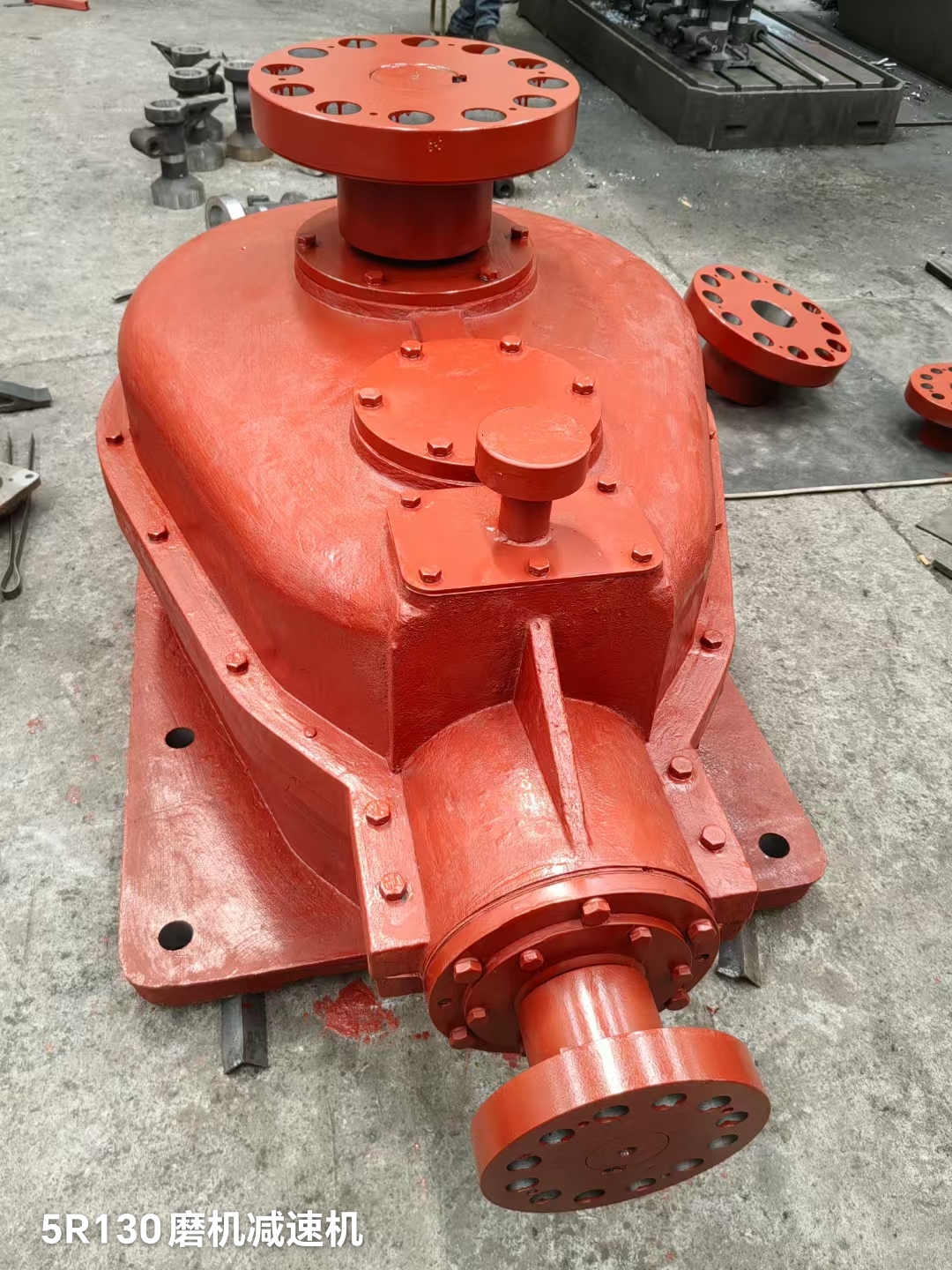

                                                                    TGM130 (5R) Super-Pressure Trapezium Roller Mills Reducer

Type：TGM130(5R)

Roller pieces：5

Ring pieces：1

Roller diameter：Ø410*210

Ring diameter：Ø1280

Mainframe motor：75-90kw

Blower motor：75kw

Classifier motor：7.5kw

Capacity：6-15t/h

Overall size：8802*7505*9695mm

Weight：26.1t

 TGM130 (5R) Super-Pressure Trapezium  Mills Rollers

TGM130 Trapezium Grinding Roller Mills advantages

(1) The super-pressure trapezium mill is equipped with balanced pressurizing springs that connect the grinding roller assembly via tie rods, hinge mounts, and horizontally positioned springs; the radial force generated by this linkage mechanism prevents damage to the main shaft and bearings caused by large material particles entering the grinding chamber, thereby extending the equipment's service life.

(2) The main unit(mainframe) and the powder separator of the super-pressure trapezium mill are connected via a flexible coupling; the shock-absorbing springs and sealing strips not only reduce equipment vibration and noise but also prevent resonance between the main unit and the powder separator, so minimizing wear and extending the service life of both components.

(3) The main unit base (air duct) features a specialized design that ensures smooth airflow, thereby guaranteeing efficient powder separation; the streamlined design of the airflow guiding sections prevents clogging by air or powder and reduces wear on the duct.

(4) Our grinding rollers and rings are made of Mn13Cr2 material; they are wear-resistant, durable, and reasonably priced, reducing the frequency of replacement.

(5) Our grinding roller shafts undergo a quenching and tempering process, ensuring both wear resistance and toughness.

(6) In addition to ensuring consistent quality through our assembly processes, our gear reducers feature shafts and gears that have undergone heat treatment (quenching and tempering); this ensures the durability of core components and reduces both the frequency and duration of maintenance.

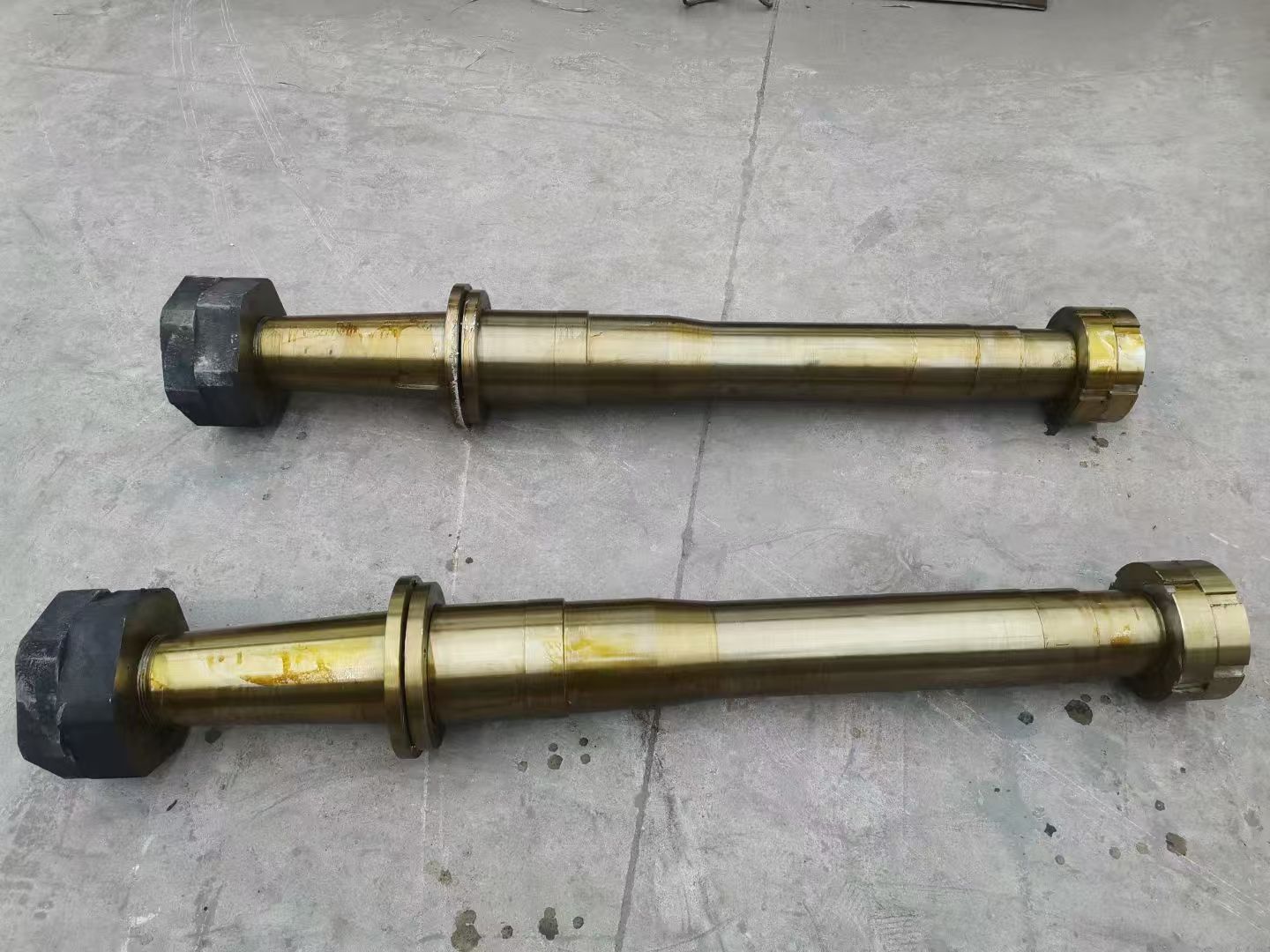

TGM130(5R)Suku Cadang Mesin Raymond Mills roller shafts

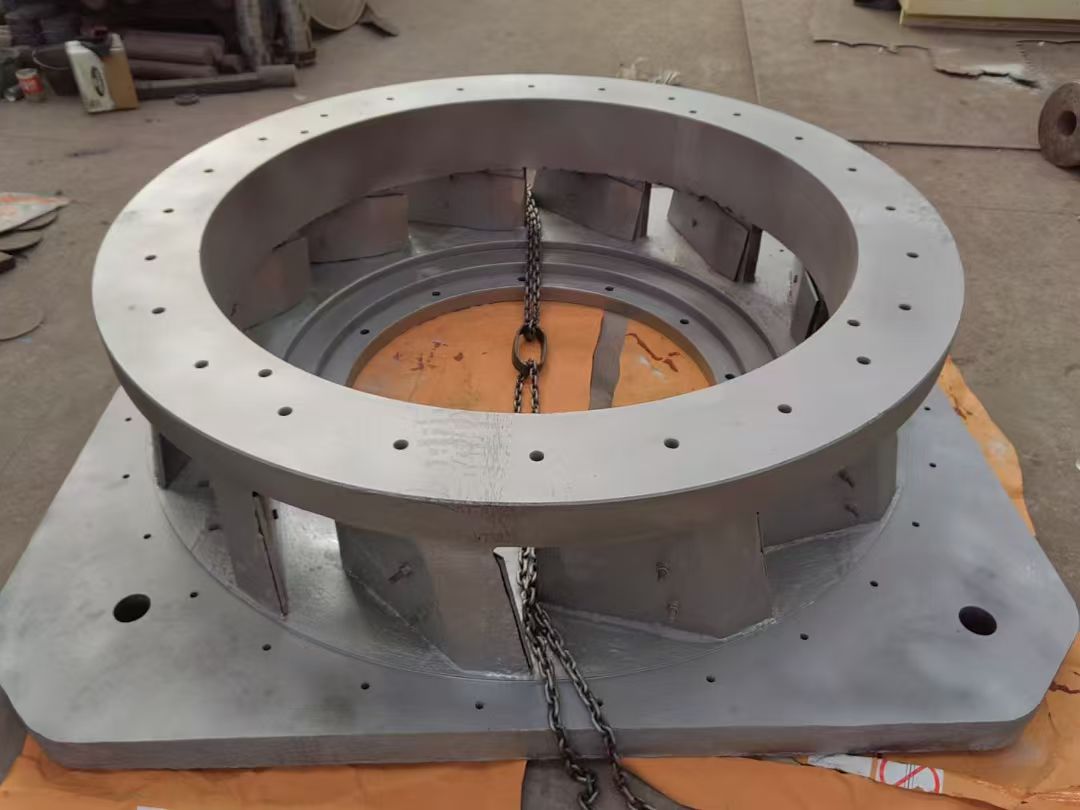

The main unit base (air duct)
