Electrolytic Manganese MTW175 European Grinding Roller Mills for Indonesia Market
Suitable for grinding materials
Limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, pyroxene, quartz, sodium bentonite, calcium bentonite, bauxite, marble, feldspar, phosphate rock, coal powder, clay, kaolin, wollite, lime, alumina, etc. Any materials which are Mohs hardness below 7 andhumidity within 6% of all kinds of non-flammable and explosive materials are suitable.
Working Principle
The crushed materials below 35mm are sent into the main machine chamber quantitatively and continuously by the variable frequency belt feeder. Then the materials after grinded are into the separator by the fan air flow for classification. Under the action of the analyzer, the materials that do not meet the fineness requirements falls into the grinding room for re-grinding, and the qualified materials enter the cyclone powder collector with the air flow through the pipeline for separation and collection. The fineness powders are discharged by the discharge device. The equipment systems are equipped with a pulse dust collector, which strictly follows the requirements of environmental protection.
Specifications - Technical Data
type | MTW110 | MTW138 | MTW175 | |
Ring inside dimension（mm） | 1280 | 1380 | 1750 | |
Roller pieces(pcs.) | 4 | 4 | 5 | |
Mainframe speed(r/min) | 106 | 105 | 78 | |
Feeding size（mm） | ≤30 | ≤30 | ≤35 | |
Fineness powder(mesh) | 80-600 | 80-600 | 80-425 | |
capacity（t/h） | 2-13.8 | 2.9-17.5 | 6.5-32 | |
Motor power（kw） | mainframe(kw) | 75-90 | 90-110 | 185-200 |
fan(kw) | 75-90 | 110-132 | 200 | |
Separator (kw) | 18.5-22 | 22-30 | 37 | |
Dust-collecting catcher | DMC36 | DMC48 | DMC96 | |
Dust-collecting catcher power（kw） | 3+4 | 3+4 | 7.5+7.5 | |
Feeding machine power（kw） | 3 | 4 | 5.5 | |
dimension（mm） | 8000×8550×9700 | 9700×8500×10200 | 9368×11500×11000 | |
Notes: 1. The capacity is for grinding calcite and it’s cosieving rate is up to 80%.
2. Any change of technical data shall not be advised additionally.

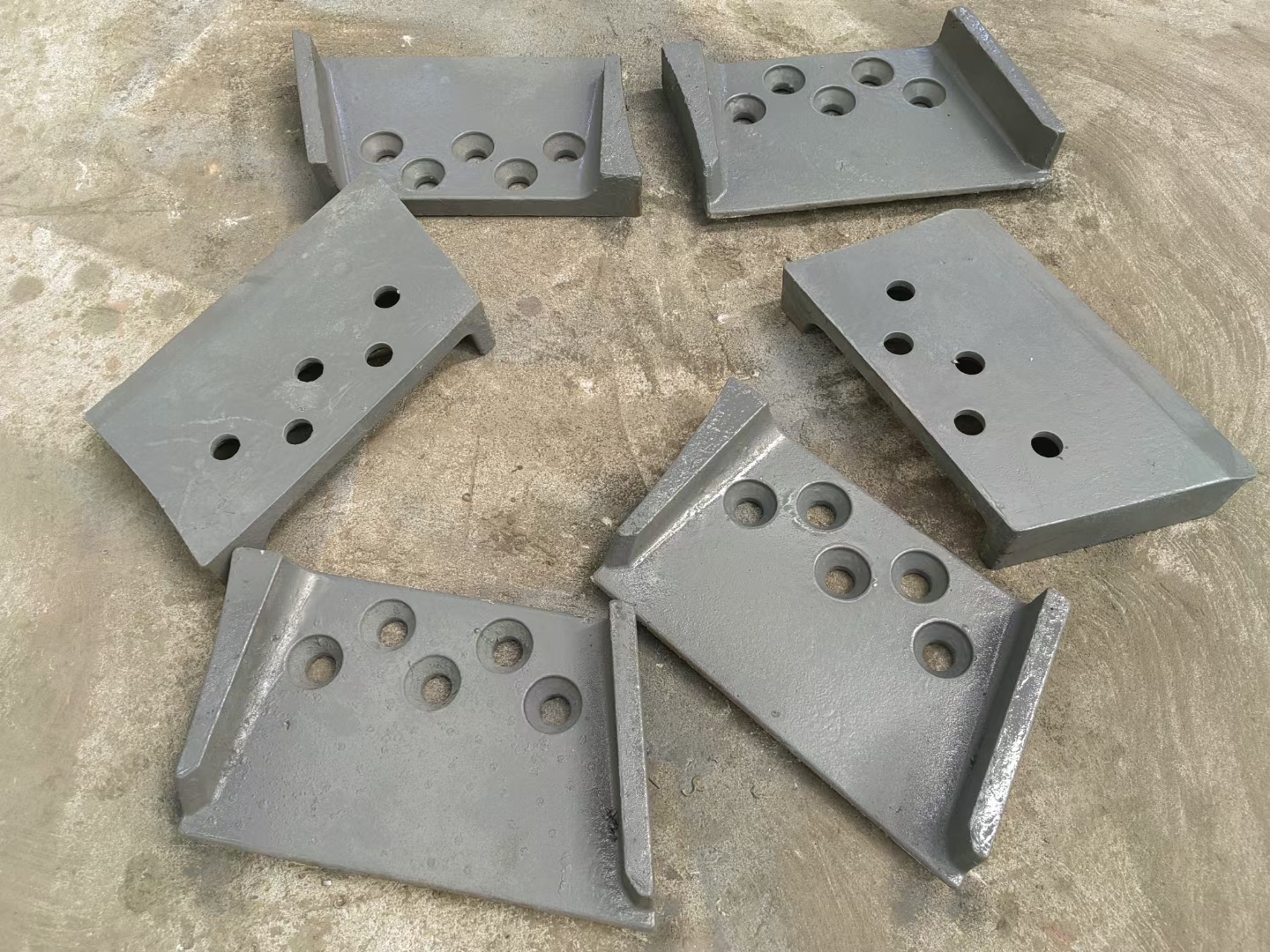

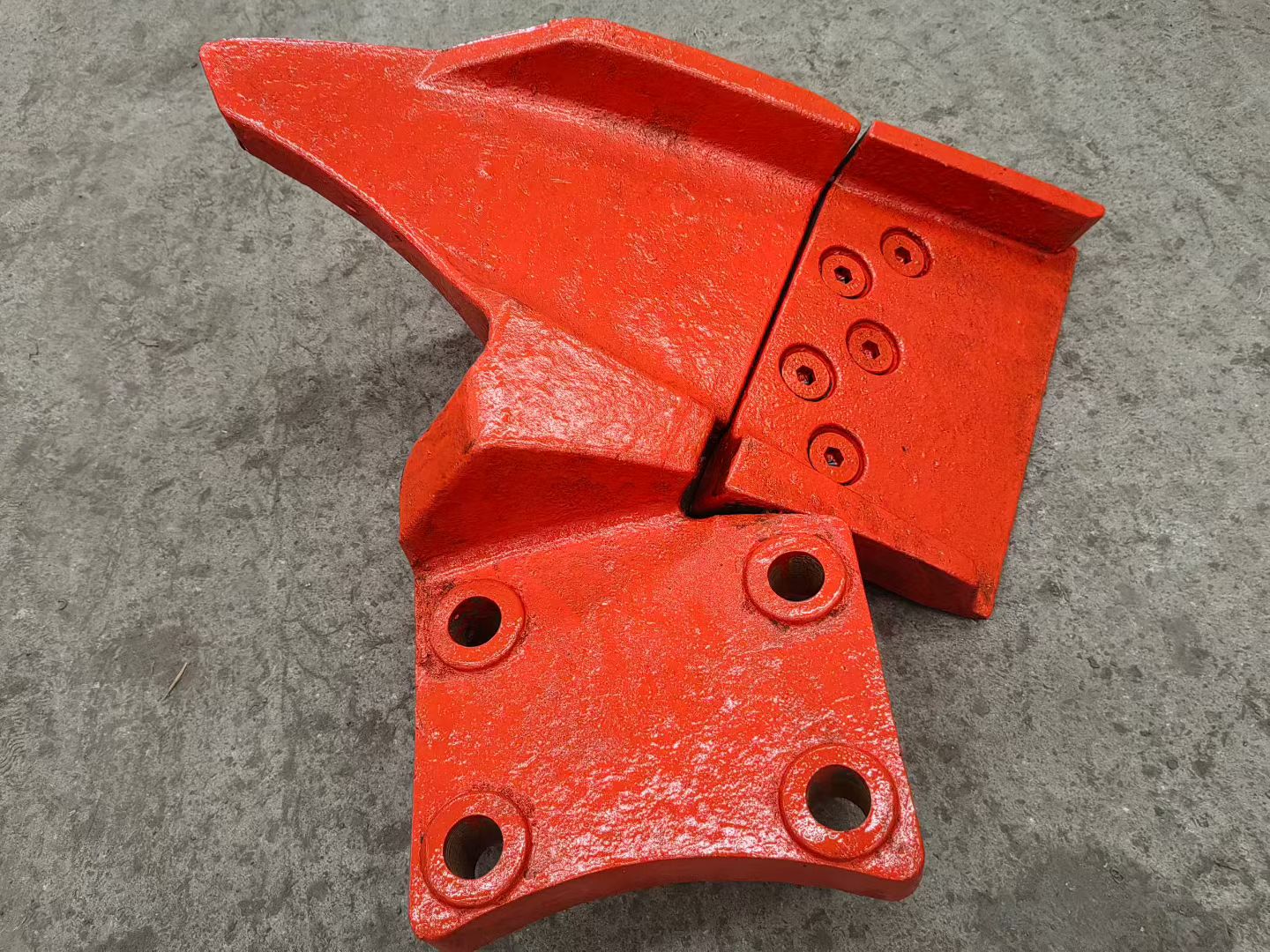

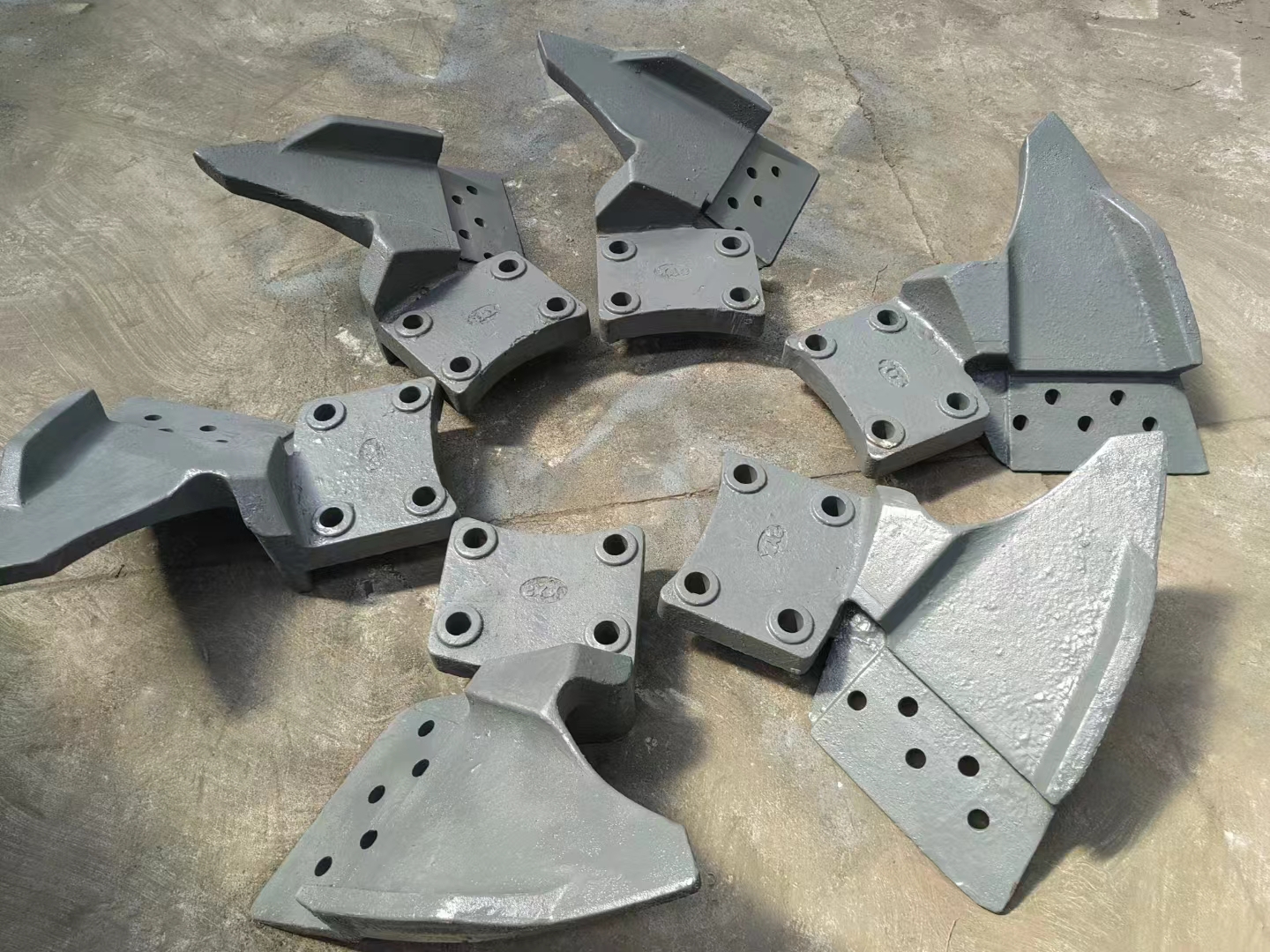

MTW175 European Grinding Roller Mills parts shovel assembly in Indonesia Market
MTW175 Dolomite Powder Processing|hammer mill crusher shovels in Indonesia Market
MTW175 Coal Gangue Grinding Mill Production Line Shovels Assemblies in Indonesia Market
