Daily Maintenance Tips for MTW110 European Type Grinding Roller Mill

Air Duct Guard Plate for MTW110 European Type Grinding Mill: A Small Component with a Big Impact —also known as the wear-resistant plate for air duct protection or the air guide plate—plays a vital role despite its small size.

Optimized structural design: The angle of the guard plate directly dictates the direction and flow rate of the system air moving through the duct. An improper design blocks the airflow. A well-calculated angle ensures smooth air passage through the duct and into the main unit, preserving optimal powder selection efficiency.

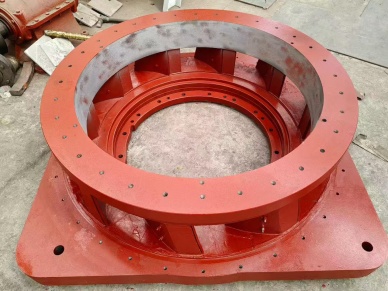

Essential duct protection: This plate protects the Raymond mill base, which is a massive, heavy, and critical cast iron component. Replacing a worn-out or completely breached base incurs massive costs.

Crucial maintenance check: Users must inspect the wear status of the air duct guard plates during routine equipment maintenance and replace them promptly to avoid severe damage to the base.

Main technical diamter data of MTW110 European Type Grinding Roller Mill

Roller numbers: 4 pieces

Roller Diameter and Height(mm):Ø360*190

Ring Diameter and Height(mm):Ø1100*190

Main Motor Speed (rpm): 120

Maximum Feed Size:30mm

Output size(mm): 1.6-0.045

         (mesh):20-325

          (um):880-45

Capacity(t/h): 3-8

Dimension:  8.5*8*8.7m

Main motor:6- 55kw

Blower motor: 4-55kw

Analyzer motor:4-7.5KW

Supporting equipments include PEX250*400 Jaw Crusher or PC400*300 Hammer Crusher.

Feeding equipments:TD Series bucket elevator, belt convyor, GZ2D electric vibrating feeder.

Dust collector system: DMC64 Pulse Bag Filter

Pulse bag filter motor: 6kw

Number of Filter Bags for Pulse bag filter: 64 pieces

Applications and Wear Parts of MTW110 European Type Raymond Grinding Mill

Applicable Materials & Industries:
The MTW110 European Type Raymond Grinding Mill is ideally suited for processing non-metallic minerals such as pulverized coal, dolomite, gypsum, carbon black, coal gangue, quartz, barium sulfate, iron ore, manganese ore powder, graphite, and phosphate rock. It is widely utilized across industries including wastewater treatment, flue gas desulfurization (FGD), chemical engineering, building materials, papermaking, plastics, coatings, aquaculture, and oil extraction.

Main Wear Parts & Materials:

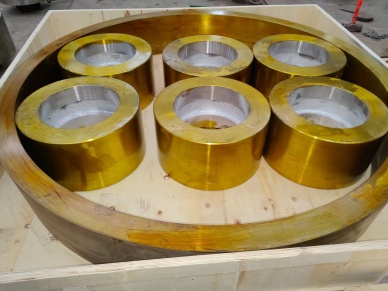

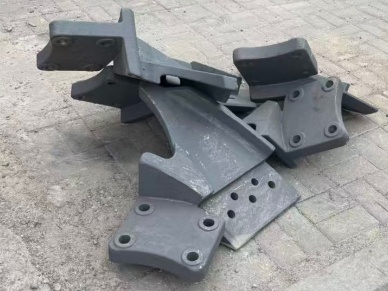

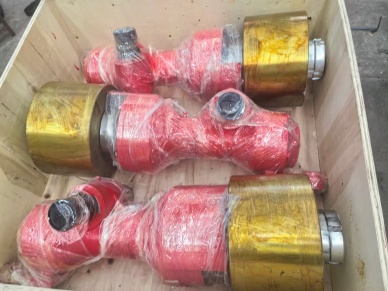

The primary wear parts of the MTW110 grinding mill consist of grinding rollers, grinding rings, shovels, shovel bases, bearings, grinding roller assemblies, sealing gaskets, oil seals, roller shafts, springs, and nuts. The grinding rollers and grinding rings are manufactured from high-durability Mn13Cr2 (13% Manganese, 2% Chromium) alloy.
